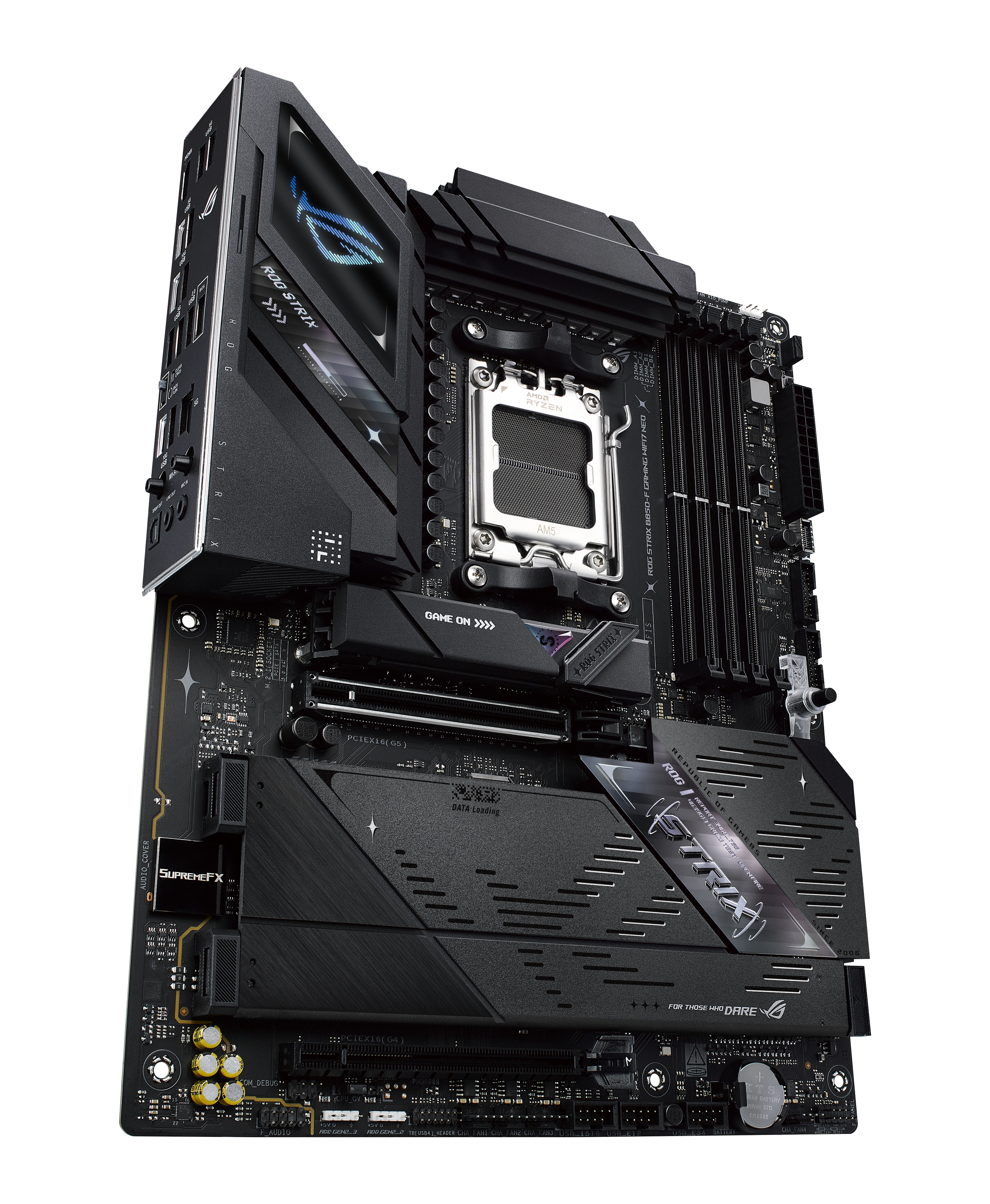

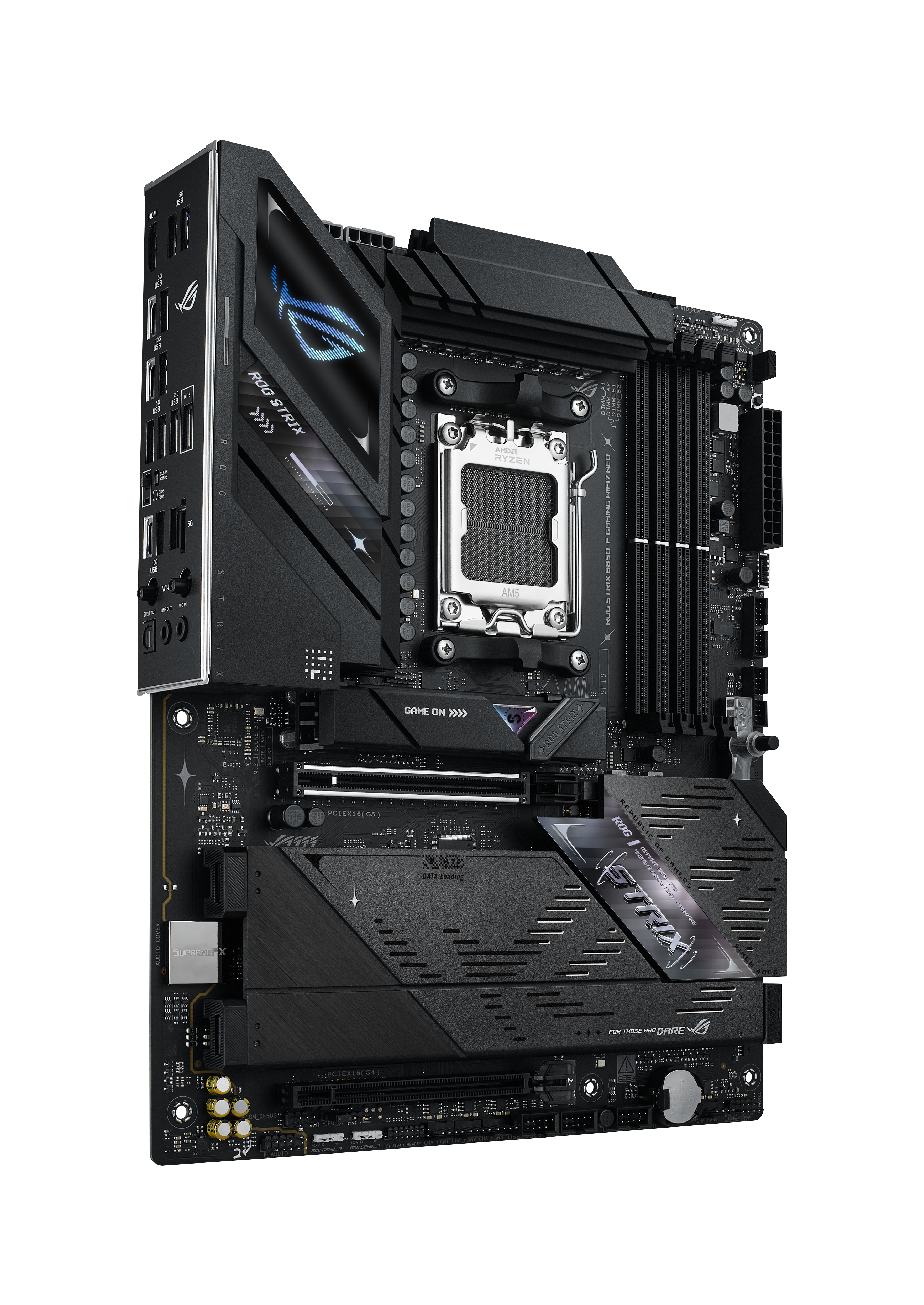

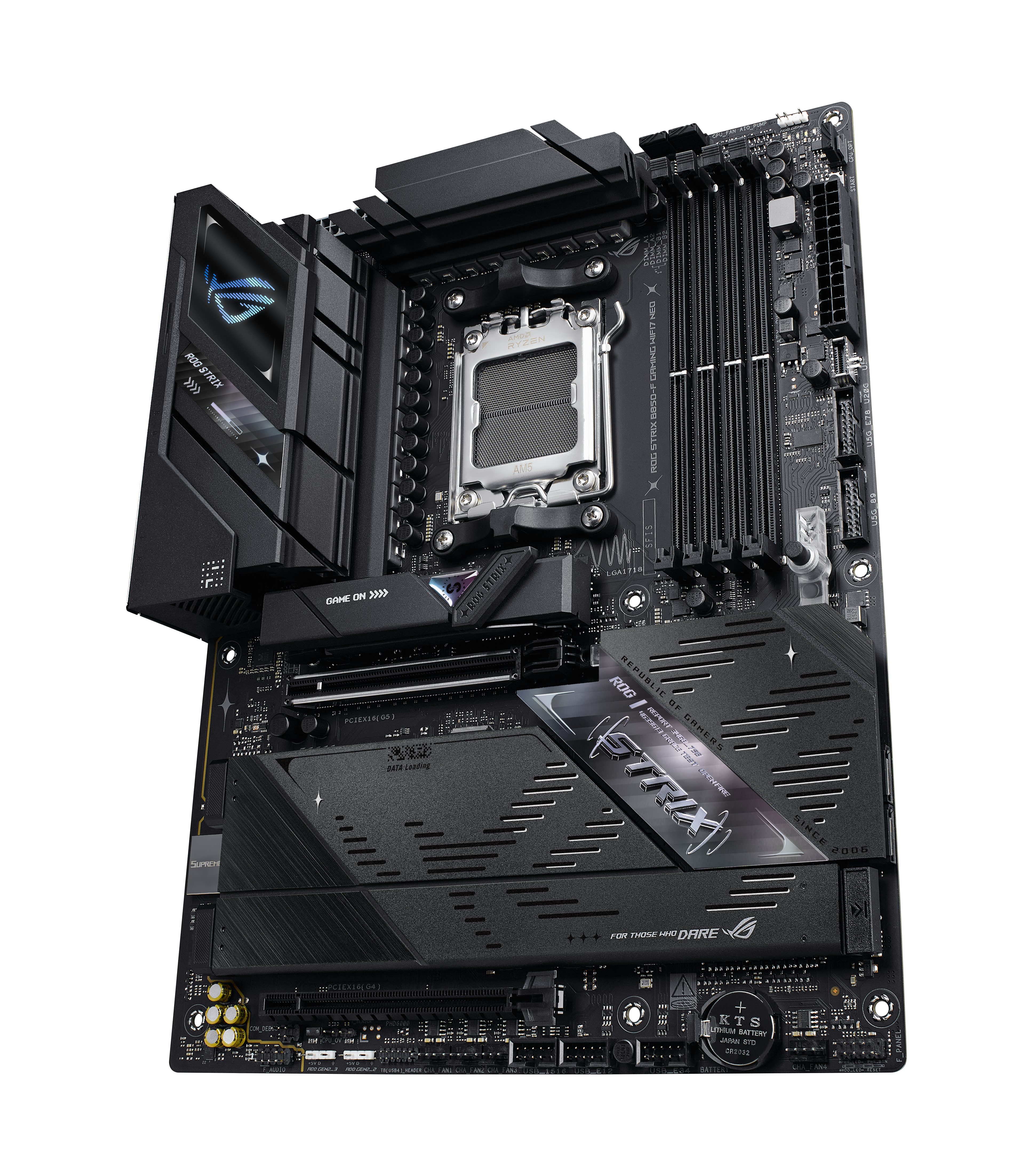

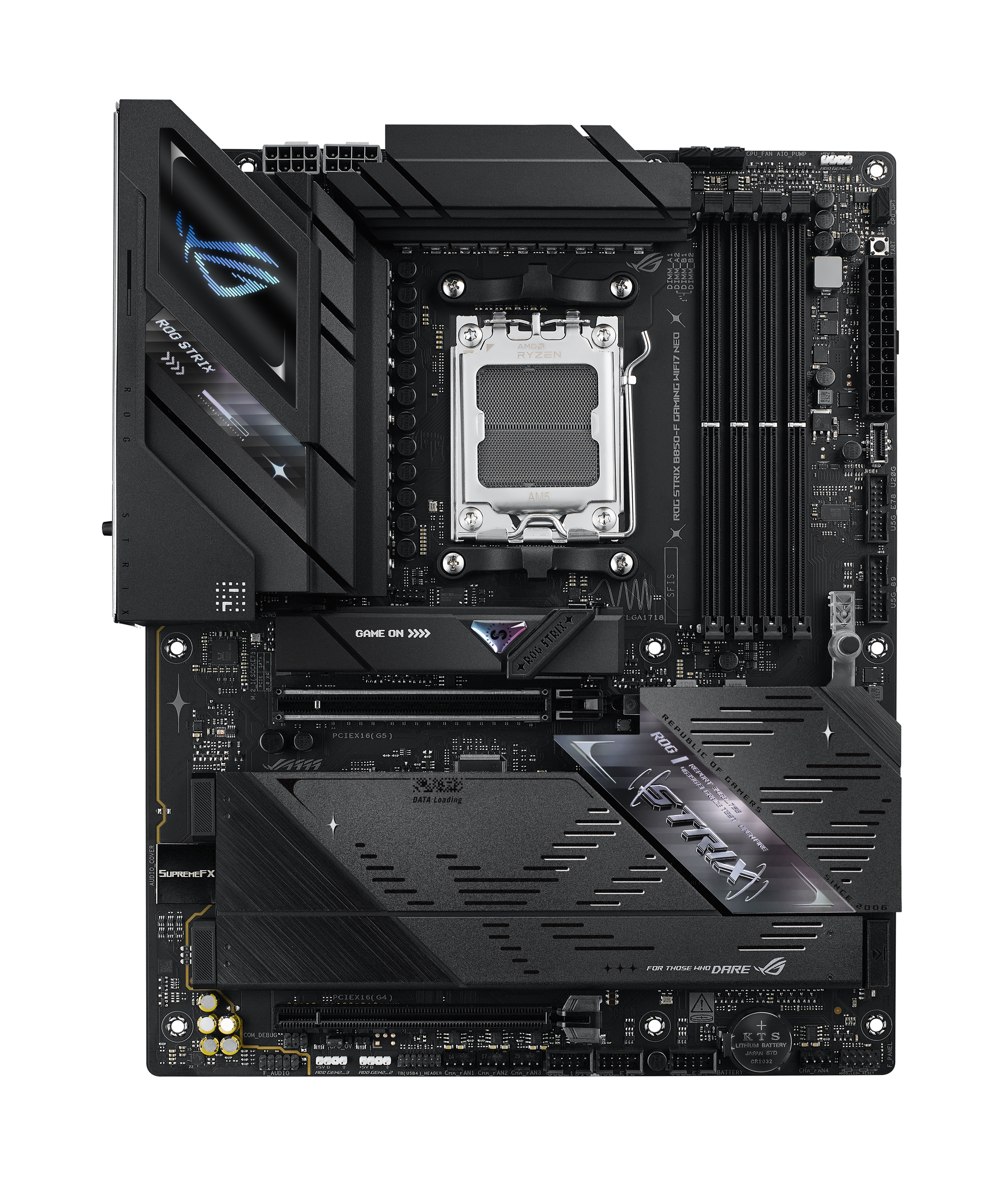

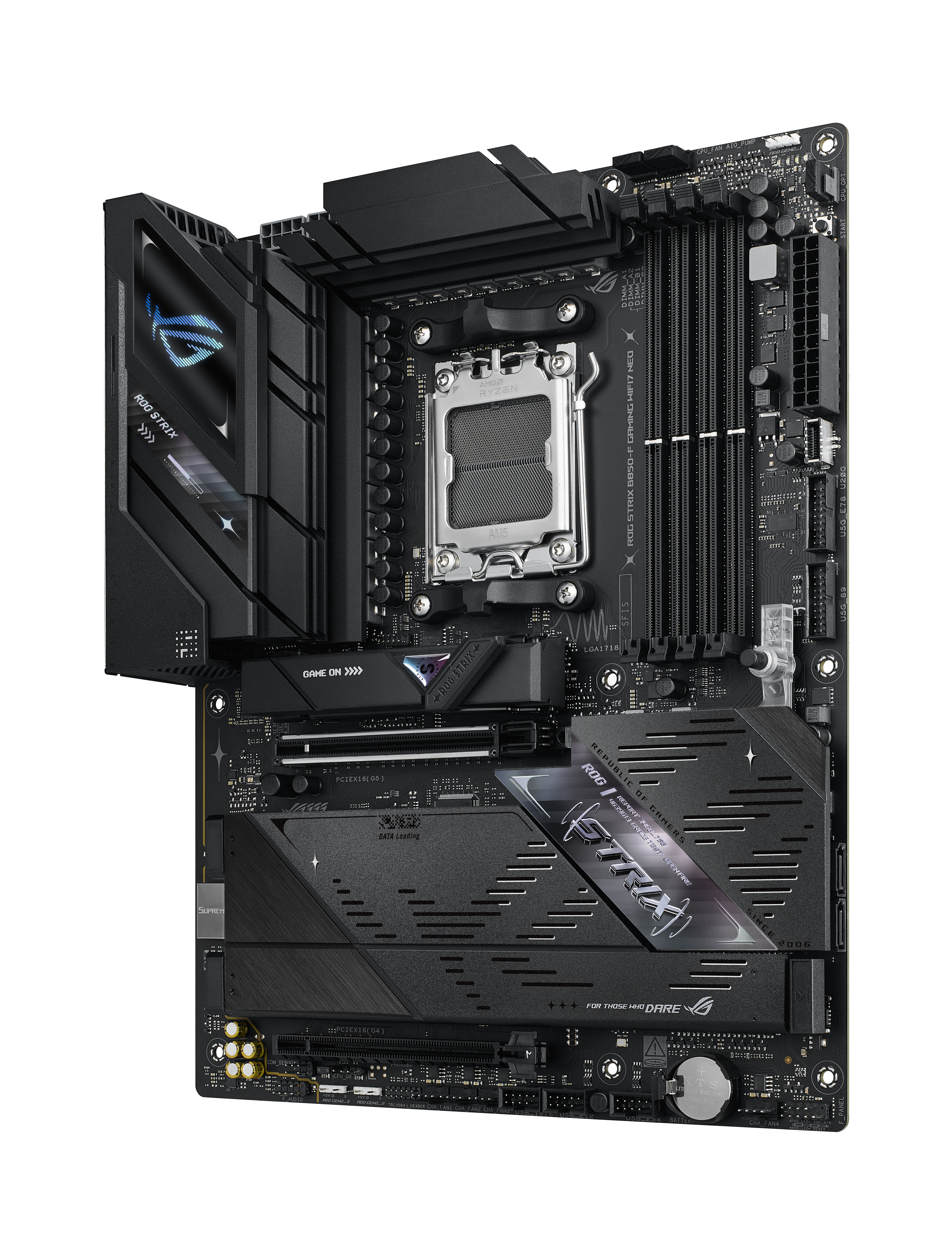

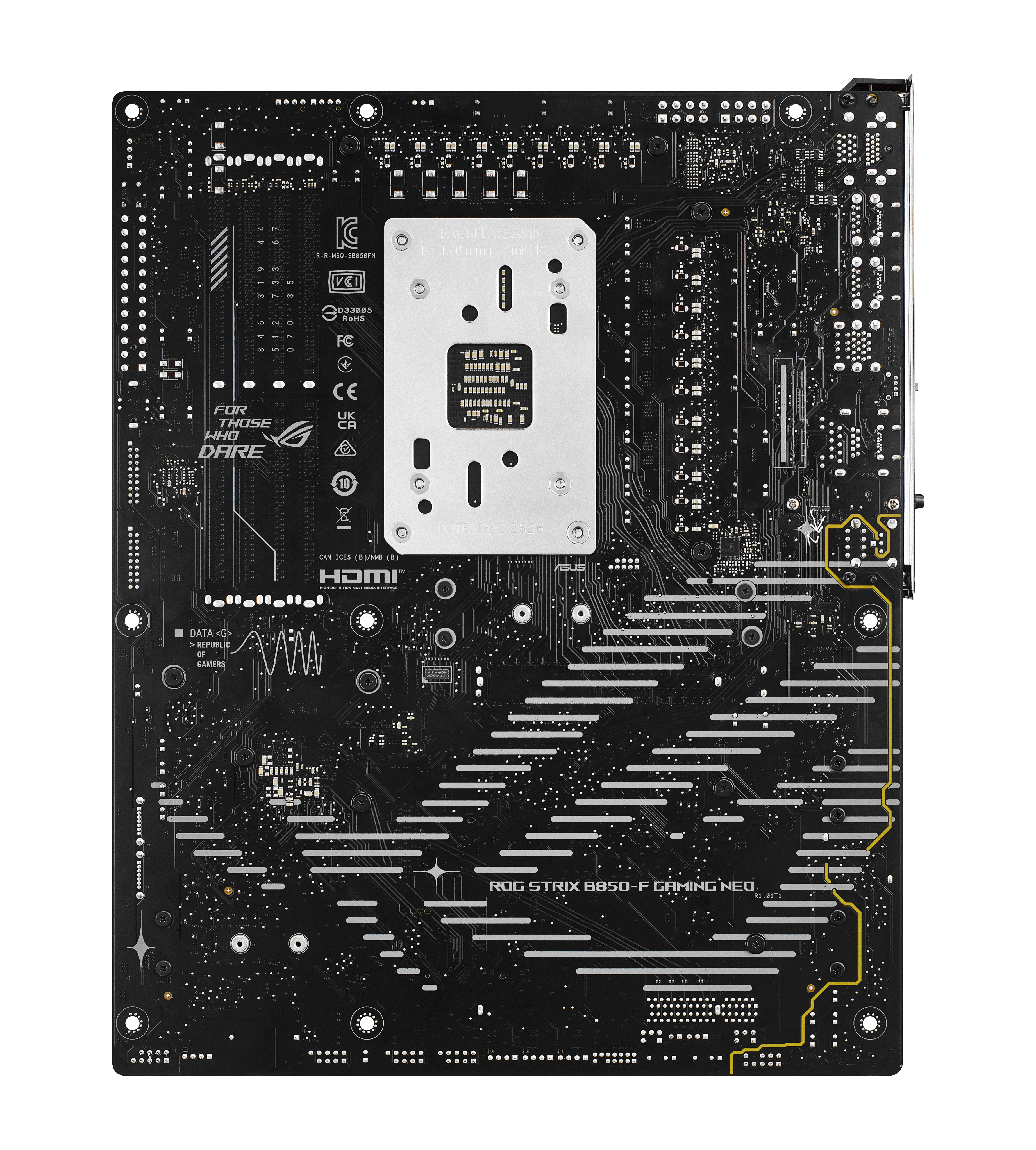

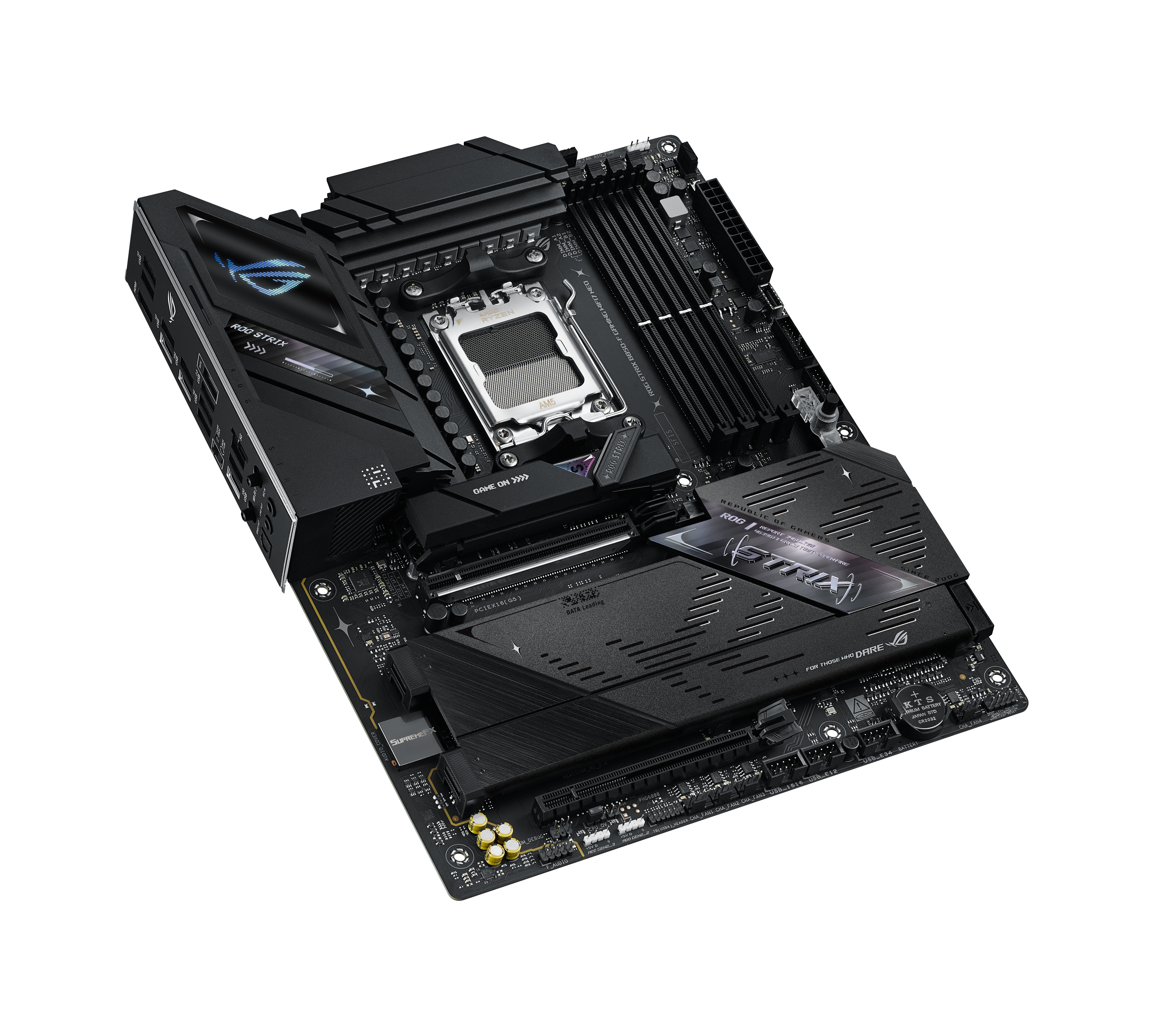

ASUS ROG STRIX B850-F GAMING WIFI7 NEO AMD ATX motherboard DDR5 PCIe 5.0 4xM.2
ASUS
Normale prijs:
€ 247,99
- Socket
- AM5
- Chipset
- B850
- Formaat
- ATX
- Geheugentype
- DDR5
Tijdelijk niet leverbaar
Productnummer:
GGH-000084
Beschrijving
Productinformatie "ASUS ROG STRIX B850-F GAMING WIFI7 NEO AMD ATX motherboard DDR5 PCIe 5.0 4xM.2"
Productspecificaties
Platform
- Socket
- AM5
- Chipset
- B850
- Processorfabrikant
- AMD
- Ondersteunde processors
- AMD Ryzen 7000, AMD Ryzen 8000, AMD Ryzen 9000
- Compatibele processors (bron)
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Geheugen
- Geheugentype
- DDR5
- Aantal geheugenslots
- 4
- Maximale geheugencapaciteit
- 256 GB
- Geheugenkanalen
- Dual-channel
- Ondersteunde geheugensnelheden
- DDR5-8000
- ECC-ondersteuning
- Niet-ECC
- Opmerkingen geheugen
- Supports up to 9000+MT/s (OC)**, ECC and Non-ECC Supports up to 8400+(OC)**/8200+(OC)*** MT/s with Ryzen™ 9000 Series Processors, 9000+(OC)**/8600+(OC)*** MT/s with Ryzen™ 8000 Series Processors, 8000+(OC)**/8000+(OC)*** MT/s Ryzen™ 7000 Series Processors,
- Niet-gebufferd geheugen
- Ja
- Overklokprofielen
- AMD EXPO
- Compatible modules
- ECC UDIMM
Uitbreidingsslots
- Uitbreidingsslots
- 1x PCI-e 4.0 x16, 1x PCI-e 5.0 x16
- Versie primair PCIe-slot
- PCIe 5.0
- Multi-GPU-ondersteuning
- Niet ondersteund
- Opmerkingen uitbreidingsslots
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 1 x PCIe 4.0 x16 slots (supports x8 mode) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 1 x PCIe 4.0 x16 slots (supports x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)** * Specifications vary by CPU types. ** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3
- PCIe 4.0 x16-slots
- 1
- Totaal PCIe x16
- 2
- PCIe 5.0 x16-slots
- 1
Opslag
- Aantal M.2-slots
- 4
- Aantal SATA-poorten
- 2
- Hardeschijf bus (intern)
- 2x M.2 (PCI-e 4.0 x4), 2x M.2 (PCI-e 5.0 x4), 2x SATA-600
- Aantal M.2-heatsinks
- 4
- Ondersteunde opslagtypen
- HDD & SSD
- Aantal ondersteunde opslagdrives
- 6
- Opmerkingen opslag
- Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8500 & 8300 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports * M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled. AMD RAIDXpert2 Technology* Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10
- Maximaal aantal HDD's
- 2
- RAID beschikbaar
- Ja
Video-uitgangen
- Ondersteuning geïntegreerde graphics
- Ja
- Video uit
- HDMI
- Totaal video-uitgangen
- 1
- Aantal HDMI-poorten
- 1
- Hoogste HDMI-versie
- HDMI 2.1
- Aantal DisplayPort-poorten
- 1
Netwerk en draadloos
- Netwerkcontroller(s)
- Realtek (variant)
- Maximale LAN-snelheid
- 5 Gbps
- Wi-Fi-generatie
- Wi-Fi 1, Wi-Fi 5, Wi-Fi 6, Wi-Fi 2, Wi-Fi 6E, Wi-Fi 3, Wi-Fi 7, Wi-Fi 4
- Ethernet (RJ45)
- 1x Ethernet 5Gbps
- Aantal Ethernetpoorten
- 1
- Ethernet 2,5 Gbps
- 2.5 Gigabit Ethernet
- Wi-Fi-controller
- MediaTek Wi-Fi 7 MT7925
- Ethernet LAN
- Ja
- Wi-Fi aanwezig
- Ja
- Bluetooth aanwezig
- Ja
- Ondersteunde Wi-Fi-standaarden
- Wi-Fi 7 (802.11be)
Aansluitingen
- USB/TB extern
- 2x USB 2.0 type-A, 5x USB 3.2 (Gen1, 5Gb/s) type-A, 1x USB 3.2 (Gen1, 5Gb/s) type-C, 2x USB 3.2 (Gen2, 10Gb/s) type-A, 2x USB 3.2 (Gen2, 10Gb/s) type-C
- USB/TB intern (front)
- 3x 9-pins USB 2.0 header, 2x 19-pins USB 3.2 (G1, 5Gbit/s) header, 1x USB-C 3.2 (G2x2, 20Gbit/s) header
- USB 2.0-headers intern
- 2
- USB 3.2 Gen 1-headers intern
- 1
- USB 2.0 Type-A extern
- 4
- USB 3.2 Gen 1 Type-A extern
- 4
- USB 3.2 Gen 2 Type-A extern
- 2
- USB 3.2 Gen 2 Type-C extern
- 1
- USB 3.2 Gen 2-headers intern
- 1
- USB 3.2 Gen 1 Type-C extern
- 0
- USB 3.2 Gen 2x2 Type-C extern
- 1
Audio
- Audiochip
- ALC4080
- Audiokanalen
- 7.1
- Audio-aansluitingen
- 1x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
(Fan) headers
- RGB-headers
- 3x 3-pins (ARGB)
- Headers (fan/water)
- 7
- CPU-fanheaders
- 1
- Systeemfanheaders
- 4
- Front-audioheader
- Ja
- 24-pins ATX-voeding
- Ja
- CPU-koeleraansluiting
- Ja
- 8-pins EPS-voeding
- Ja
- Thunderbolt-headers
- 1
- Extra 12V-aansluiting
- Ja
Overige eigenschappen
- Onboard knoppen
- Clear CMOS, Power
- Eigenschappen moederbord
- BIOS-update zonder CPU, Geïntegreerd I/O-shield
BIOS en functies
- BIOS
- UEFI AMI
- BIOS-geheugen (Mbit)
- 256
- Clear CMOS-knop
- Ja
RGB
- LED-verlichting
- Ja
- LED-kleuren
- Multi-color
Formaat en afmetingen
- Formaat
- ATX
- Breedte
- 305 mm
- Diepte
- 244 mm
VRM
- Type stroomvoorziening
- Powerstages
- VCore-powerstage
- 80
- Aantal VCore-powerstages
- 16
- Theoretische VCore-rating
- 1.28
- VRM-koeling
- Heatsink (passief)
Software en besturingssysteem
- Ondersteunde besturingssystemen
- Windows 11
Garantie en bijzonderheden
- Kleuren
- Zwart
- Fabrieksgarantie
- 256
Informatie en productcodes
- EAN / GTIN
- 4711636434904
- Fabrikantnummer
- 90MB1NX0-M0EAY0
- Artikelnummer
- GGH-000084
- Garantieduur
- 36 maanden
