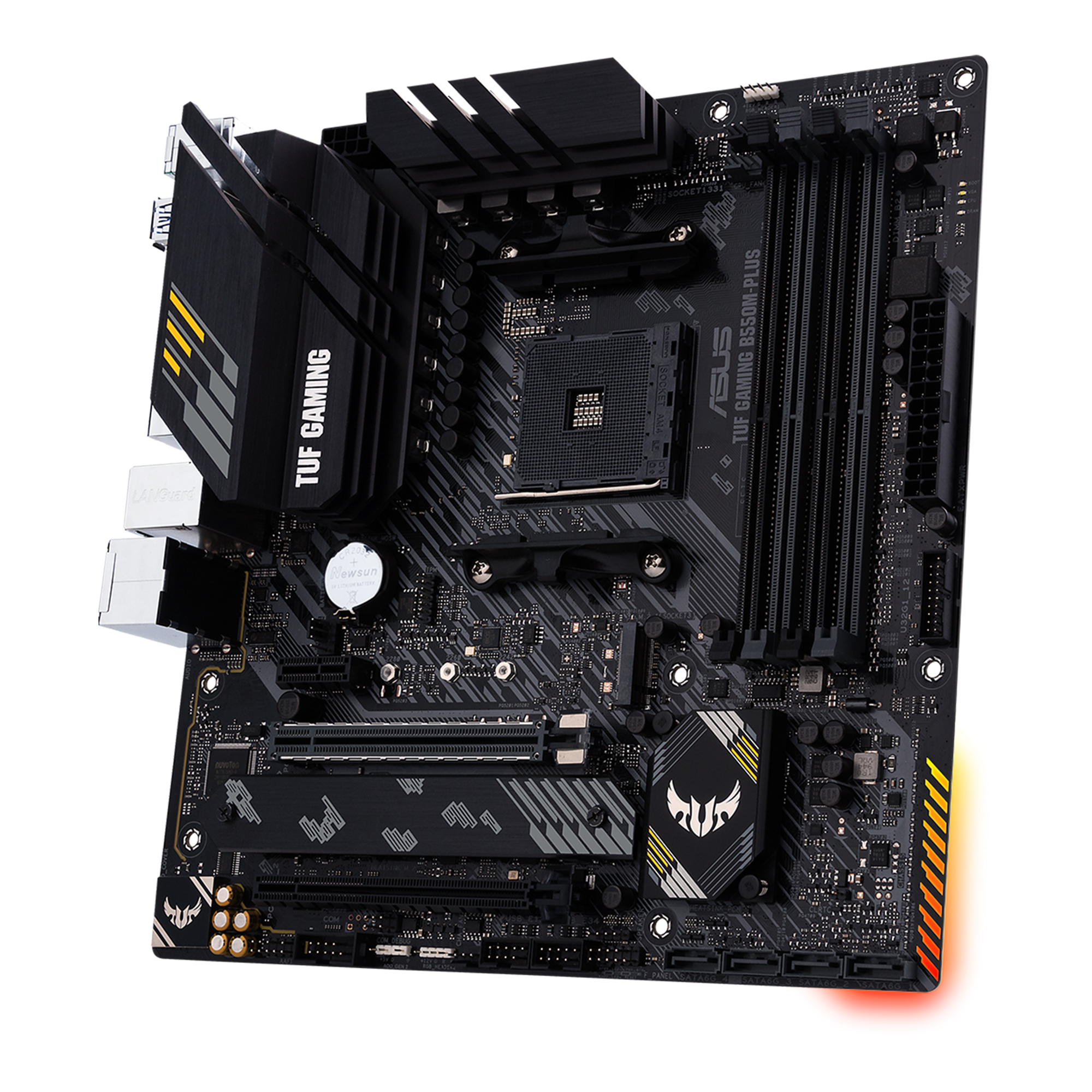

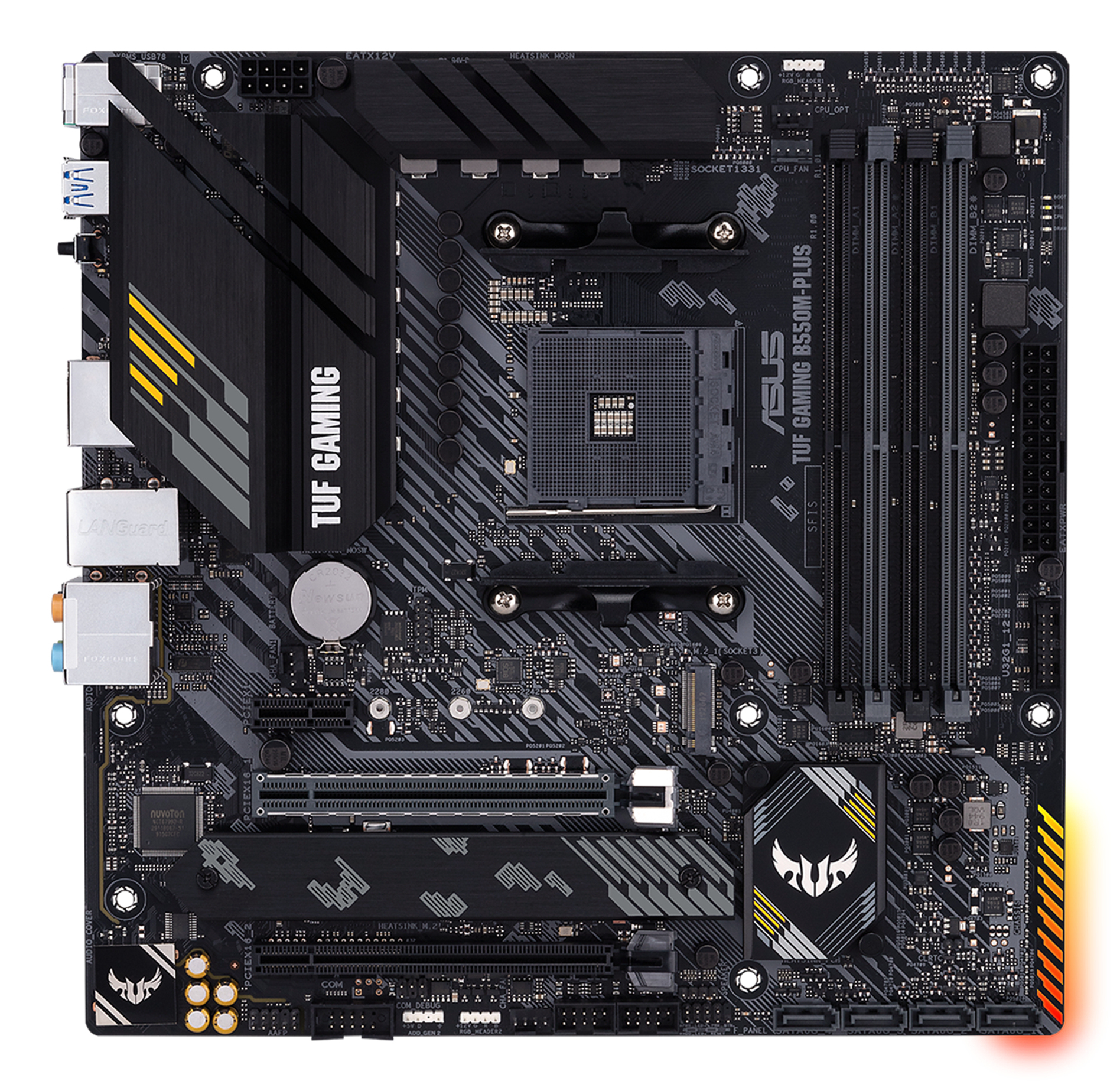

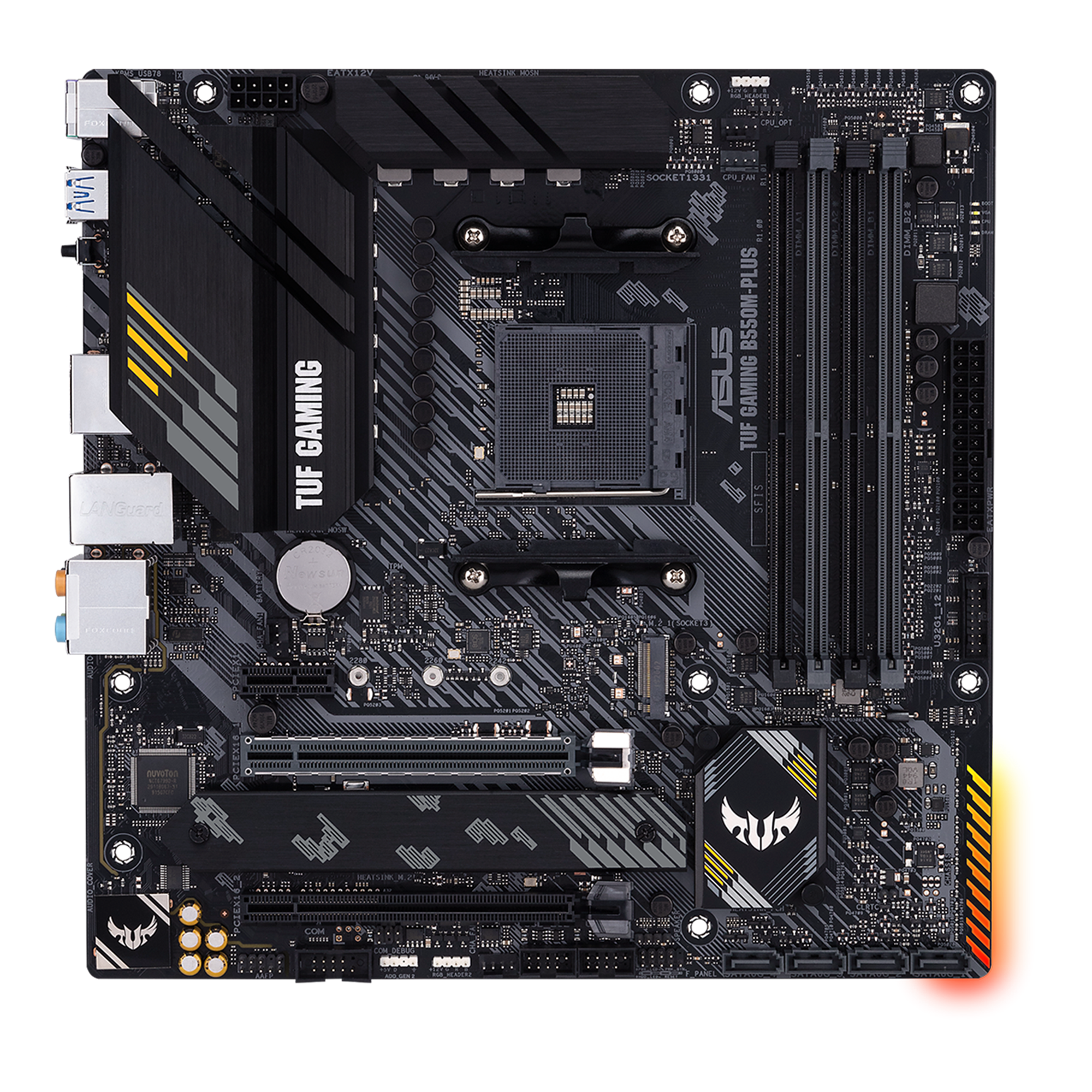

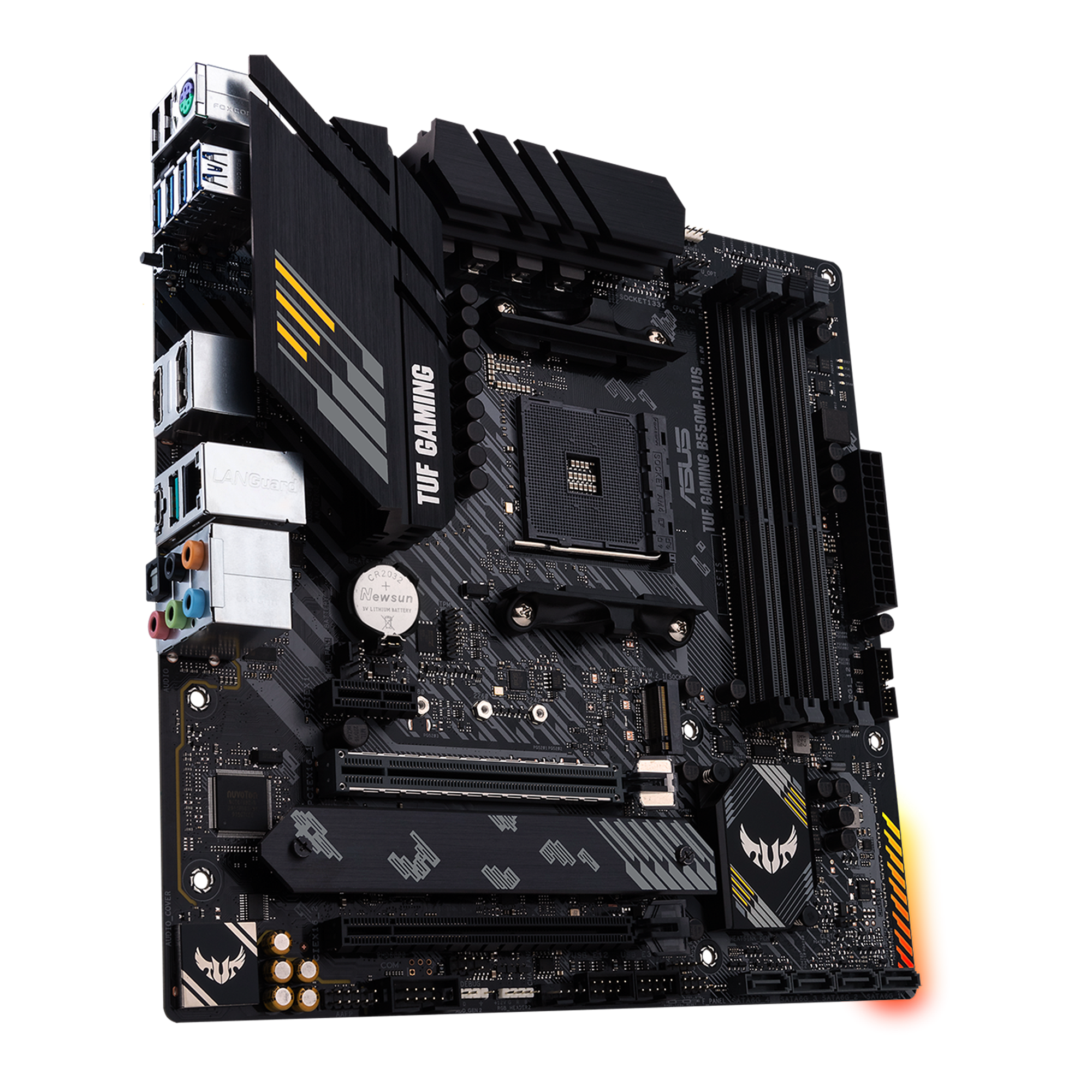

ASUS TUF GAMING B550M-PLUS mATX MB PCIe 4.0 dual M.2 10 DrMOS power stages 2.5Gb Ethernet HDMI DisplayPort SATA 6Gbps
ASUS
Normale prijs:
€ 160,99
- Socket
- AM4
- Formaat
- Micro-ATX
- Geheugentype
- DDR4
- Maximale LAN-snelheid
- 5 Gbps
2-4 werkdagen
Op voorraad bij onze leveranciers
Bekijk voorraadverdeling
- Eigen magazijn
- Niet voorradig
- Leveranciers
- 11 stuks voorradig
Productnummer:
GGH-000115
Beschrijving
Productinformatie "ASUS TUF GAMING B550M-PLUS mATX MB PCIe 4.0 dual M.2 10 DrMOS power stages 2.5Gb Ethernet HDMI DisplayPort SATA 6Gbps"
ASUS TUF GAMING B550M PLUS. Processorfabrikant: AMD, Processor socket: Socket AM4, Compatibele processors: AMD Ryzen 3000 Series. Ondersteunde geheugen types: DDR4-SDRAM, Maximum intern geheugen: 128 GB, Geheugen slots type: DIMM. Ondersteunde opslagstationinterfaces: M.2, SATA. Ondersteuning voor parallel processing: 2-Way CrossFireX. Ethernet interface type: 2.5 Gigabit Ethernet
Productspecificaties
Platform
- Socket
- AM4
- Ondersteunde processors
- AMD Ryzen 3000, AMD Ryzen 4000G, AMD Ryzen 5000, AMD Ryzen 5000G
- Compatibele processors (bron)
- AMD Ryzen 3000 Series
- Processorfabrikant
- AMD
Geheugen
- Geheugentype
- DDR4
- Aantal geheugenslots
- 4
- Maximale geheugencapaciteit
- 128 GB
- Ondersteunde geheugensnelheden
- DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2933, DDR4-3200, DDR4-3600, DDR5-4400, DDR5-4800
- Opmerkingen geheugen
- 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
- Compatible modules
- ECC UDIMM
Uitbreidingsslots
- Uitbreidingsslots
- 1x PCI-e 3.0 x1, 1x PCI-e 3.0 x16, 1x PCI-e 4.0 x16
- Opmerkingen uitbreidingsslots
- AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 * Support PCIe bifurcation for RAID on CPU function.
- Totaal PCIe x16
- 2
- PCIe 4.0 x16-slots
- 1
Opslag
- Aantal M.2-slots
- 2
- Aantal SATA-poorten
- 0
- Hardeschijf bus (intern)
- 1x M.2 (PCI-e 3.0 x4 + SATA), 1x M.2 (PCI-e 4.0 x4 + SATA), 4x SATA-600
- Aantal M.2-heatsinks
- 2
- Aantal ondersteunde opslagdrives
- 6
- Opmerkingen opslag
- Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
- RAID beschikbaar
- Ja
Video-uitgangen
- Ondersteuning geïntegreerde graphics
- Ja
- Video uit
- HDMI, DisplayPort
- Totaal video-uitgangen
- 2
- Aantal HDMI-poorten
- 1
- Hoogste HDMI-versie
- HDMI 2.1
- Aantal DisplayPort-poorten
- 1
- Hoogste DisplayPort-versie
- DisplayPort 1.2
Netwerk en draadloos
- Netwerkcontroller(s)
- Realtek RTL8125B
- Maximale LAN-snelheid
- 5 Gbps
- Ethernet (RJ45)
- 1x Ethernet 2.5Gbps
- Aantal Ethernetpoorten
- 1
- Ethernet 2,5 Gbps
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Ja
- Wi-Fi aanwezig
- Nee
Aansluitingen

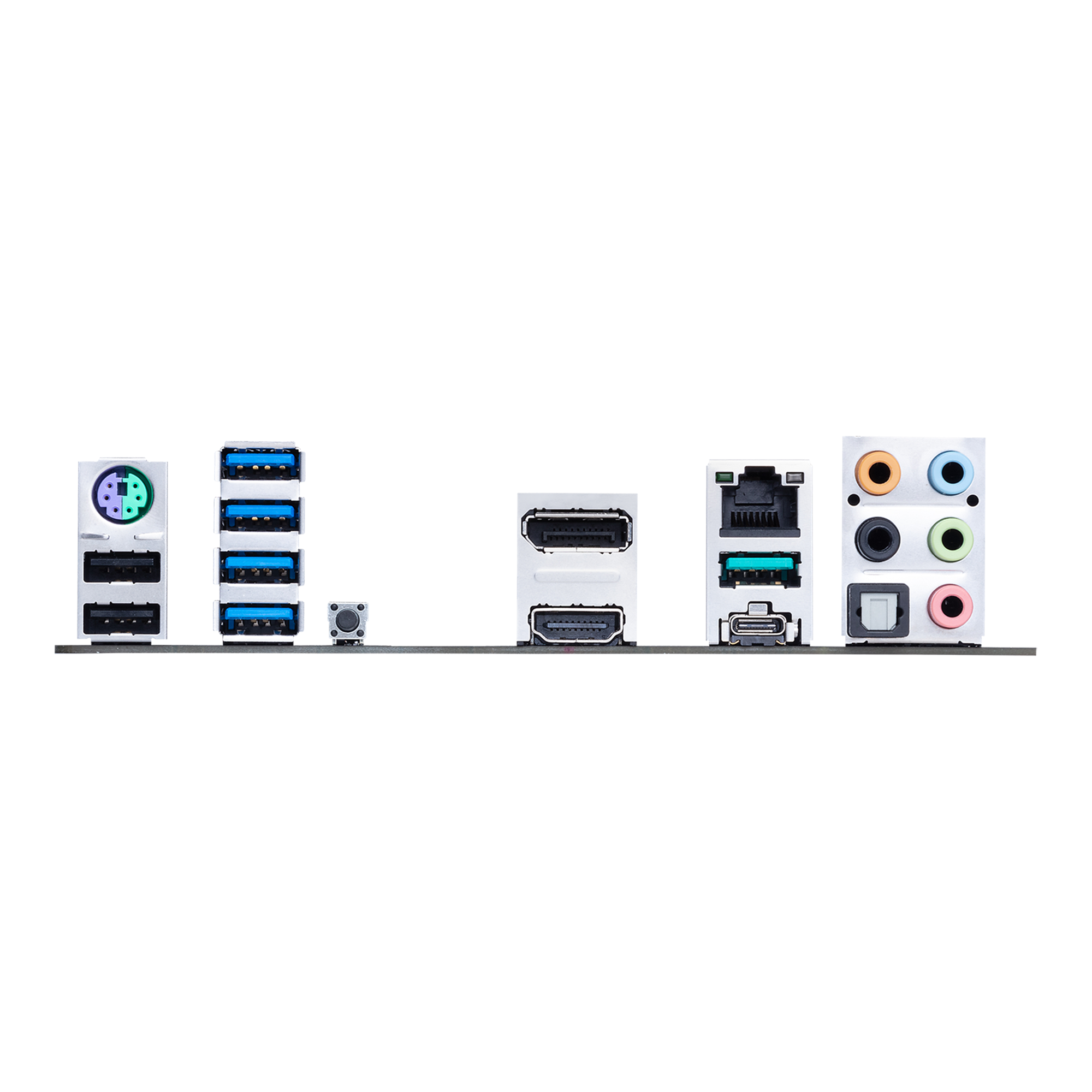

- USB/TB extern
- 2x USB 2.0 type-A, 4x USB 3.2 (Gen1, 5Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-A, 1x USB 3.2 (Gen2, 10Gb/s) type-C
- USB/TB intern (front)
- 2x 9-pins USB 2.0 header, 1x 19-pins USB 3.2 (G1, 5Gbit/s) header
- USB 2.0-headers intern
- 2
- USB 3.2 Gen 1-headers intern
- 1
- USB 2.0 Type-A extern
- 2
- USB 3.2 Gen 1 Type-A extern
- 4
- USB 3.2 Gen 2 Type-A extern
- 0
- USB 3.2 Gen 2 Type-C extern
- 2
- USB 3.2 Gen 2-headers intern
- 0
- USB 3.2 Gen 1 Type-C extern
- 0
Audio
- Audiokanalen
- 7.1
- Audio-aansluitingen
- 4x Analoog (uitgang), 1x Digitaal Optisch (S/PDIF), 1x Microfoon (ingang)
(Fan) headers
- RGB-headers
- 1x 3-pins (ARGB), 2x 4-pins (RGB)
- Headers (fan/water)
- 4
BIOS en functies
- BIOS
- UEFI
RGB
- LED-verlichting
- Ja
- LED-kleuren
- Multi-color
Formaat en afmetingen
- Formaat
- Micro-ATX
- Breedte
- 244 mm
- Diepte
- 244 mm
VRM
- Type stroomvoorziening
- Powerstages
- VCore-powerstage
- 50
- Aantal VCore-powerstages
- 8
- Theoretische VCore-rating
- 400
- VRM-koeling
- Heatsink (passief)
- VRM-opmerkingen
- Controller: ASP1106GGQW
Garantie en bijzonderheden
- Fabrieksgarantie
- 128
Informatie en productcodes
- EAN / GTIN
- 4718017623544
- Fabrikantnummer
- 90MB14A0-M0EAY0
- Artikelnummer
- GGH-000115
- Garantieduur
- 36 maanden
